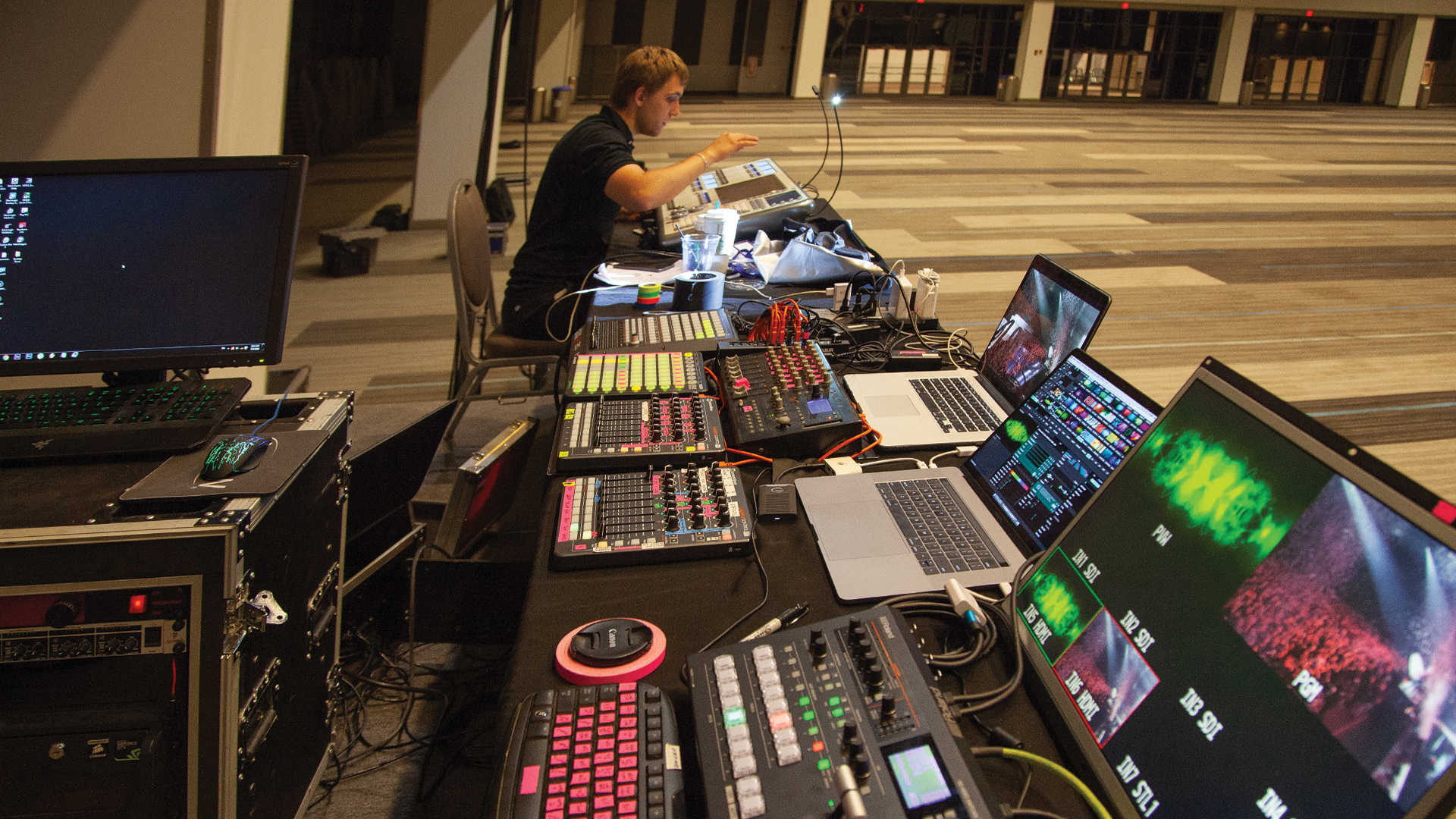

The DMX512 protocol has governed intelligent lighting control since its standardisation in 1986. This digital communication standard should, theoretically, ensure that commands from lighting consoles translate into predictable fixture responses. Reality, however, frequently involves fixtures developing their own interpretations of what constitutes proper protocol compliance. When intelligent lights decide to ignore their instructions, the resulting chaos makes programmers question both their sanity and their career choices.
The Moving Heads That Found Their Own Rhythm
A touring production deployed 48 Robe BMFL Spot fixtures industry workhorses known for reliability and performance. The lighting programmer had meticulously crafted show files featuring complex movement sequences synchronised to musical timecode. Every fixture addressed correctly, every DMX universe verified, every parameter tested during pre-production.
Opening night proceeded flawlessly until the signature ballad a moment featuring slow, synchronized tilts across all fixtures. Instead of the graceful movement programmed, approximately half the fixtures began executing rapid, jerky motions that resembled nothing in the show file. The grandMA3 console displayed correct output values. The fixtures simply chose to interpret those values creatively.
Investigation revealed a firmware inconsistency across the inventory. Half the fixtures ran version 3.2.1; the remainder operated on 3.2.4. This minor version difference altered how the fixtures interpreted 16-bit pan/tilt smoothing—a parameter that should behave identically across versions but didn’t. The fixtures hadn’t ignored protocol; they’d followed their own firmware’s protocol interpretation, which differed subtly but catastrophically.
The Technical Foundation of DMX Control
DMX512 emerged from the USITT (United States Institute for Theatre Technology) as a standardised replacement for proprietary control protocols that plagued the industry through the 1980s. The protocol transmits 512 channels of 8-bit data per universe, with extensions including RDM (Remote Device Management) enabling bidirectional communication and Art-Net and sACN extending distribution over Ethernet networks.
The original DMX512 specification defined electrical characteristics—EIA-485 signaling, 5-pin XLR connectors, data rates, and timing requirements. What the specification couldn’t fully address was how manufacturers would implement parameter responses within their fixtures. This implementation latitude creates the inconsistencies that cause fixtures to interpret identical DMX values differently.
The LED Wash Lights That Chose Their Own Colors
A theatre production specified Chauvet Professional COLORado Panel Q40 fixtures for audience wash applications. The lighting designer crafted a sophisticated color palette featuring subtle pastels that required precise RGBW mixing. Technical rehearsals confirmed that programmed colors matched design intentions exactly.
Opening night introduced audience body heat that raised ambient temperatures throughout the auditorium. The LED fixtures responded to thermal stress by activating protective thermal throttling—a feature that reduced output to prevent overheating. However, the throttling affected different LED colors at different rates, fundamentally altering the color mixing ratios the designer had specified.
The carefully balanced pastels shifted toward unexpected hues as red, green, blue, and white elements responded independently to thermal conditions. The ETC Eos console continued sending correct values; the fixtures simply couldn’t deliver those values under current thermal conditions. Protocol compliance meant nothing when physics intervened.
Understanding Fixture Implementation Variations
Fixture manufacturers interpret DMX channel assignments and parameter ranges differently despite nominal standardisation. A dimmer channel might respond linearly in one fixture and use gamma correction curves in another. Gobo indexing ranges vary between manufacturers—and sometimes between models from the same manufacturer.
The development of GDTF (General Device Type Format) and MVR (My Virtual Rig) standards aims to address these inconsistencies. These formats enable detailed fixture descriptions that visualisation software and consoles can use for accurate representation. Major manufacturers including Robe, Martin, Claypaky, and Ayrton have embraced GDTF, though legacy fixtures and smaller manufacturers may lack complete profiles.
The Profile Fixtures That Forgot Their Positions
A corporate event utilised Martin MAC Encore Performance fixtures for key light positions on executive presenters. The lighting director programmed precise focus positions that would illuminate speakers at the podium without creating unflattering shadows or spilling onto projection surfaces.
The morning rehearsal confirmed perfect positioning. When the CEO took the stage for the actual keynote, several fixtures had mysteriously shifted their pan and tilt positions by small but noticeable amounts. The speaker’s face alternated between proper illumination and shadow as fixtures that should have locked positions instead drifted.
The cause proved to be mechanical encoder slip—the fixtures’ position feedback systems had developed calibration errors that accumulated between uses. The fixtures believed they were in programmed positions; their physical reality differed. Recalibration routines executed between sessions would have prevented the drift, but the compressed event schedule eliminated this maintenance step.
The Role of RDM in Fixture Monitoring
Remote Device Management extends DMX512 with bidirectional communication enabling consoles to query fixtures for status information, configure addresses remotely, and receive error notifications. When properly implemented, RDM can alert operators to fixtures experiencing issues before those issues affect performances.
Software including ENTTEC’s DMX Workshop, City Theatrical’s DMX-Cat, and console-native RDM implementations provide monitoring capabilities. Temperature warnings, lamp hour tracking, and calibration status can all be communicated via RDM—if fixtures properly support the protocol. Implementation quality varies significantly across manufacturers and model lines.
The Network-Controlled Fixtures That Went Offline
A large installation employed sACN (streaming ACN) distribution across a managed network infrastructure featuring enterprise-grade Cisco switches. The Luminex network architecture included redundant pathways ensuring that no single point failure could interrupt control data delivery.
During a critical live broadcast, approximately 60 fixtures simultaneously dropped offline. The lighting console showed active output; network monitoring indicated healthy data flow; yet fixtures reverted to default states or froze in their last positions. The broadcast proceeded with dramatically compromised lighting while technicians frantically diagnosed the failure.
Investigation revealed a multicast flooding issue triggered by improper IGMP snooping configuration on network switches. The sACN multicast traffic overwhelmed switch processing capacity, causing packets to be dropped. Fixtures lost their control data not because the console stopped transmitting, but because network infrastructure couldn’t deliver those transmissions. The fixtures followed protocol correctly—the problem lay in the infrastructure connecting them to their controller.
Network Configuration Best Practices
Lighting networks require specific configuration that differs from general IT deployments. Quality of Service (QoS) settings should prioritise lighting traffic. IGMP snooping must be properly configured to prevent multicast flooding. Dedicated VLANs for lighting traffic prevent cross-contamination with other network services.
Purpose-built entertainment network switches from Luminex, Pathway Connectivity, and ETC include pre-configured settings optimised for lighting protocols. These switches cost more than commodity IT equipment but eliminate configuration complexity that causes production failures.
Prevention Through Proper Preparation
Preventing fixtures from ignoring protocol requires systematic approaches to equipment preparation and system validation. Firmware consistency across fixture inventories should be verified before deployments—ideally, all fixtures of a given model should run identical versions. Maintenance schedules should include calibration verification for position-sensitive fixtures.
Pre-production testing should stress systems beyond show requirements. If the design calls for slow movements, test at maximum speeds. If colors remain static, test rapid color changes. These stress tests reveal weaknesses that nominal operation might not expose until performances when failures matter most.
The fixtures that ignore protocol remind us that professional lighting involves complex electromechanical systems subject to entropy and inconsistency. The DMX512 protocol provides a common language, but dialects exist across manufacturers and products. The best programmers and technicians approach every system assuming potential miscommunication, building verification steps and fallback options into their workflows. Because when fixtures decide to ignore protocol, the show must still go on—preferably with backup plans already in motion.
